electric go kart plans, free to download

go kart plans, free to download
free go kart plans to download

Free electric go kart plans to download

Our electric go kart plans are free to download and have all the details you need to make a kart with great performance. We offer the added bonus of on-line support for our customers who 'buy us a coffee' at the check-out.  We've included lots of useful resource links and you'll find lots kart photos on this site.  If you want to design your own kart but need some inspiration, our free plans pack will give you a head start and a ready source of ideas.  We're here to help - please email us atccontact@electric-go-kart.co.uk with any questions.

NEW! 3D PDF plans of electric kart now available for download

Visit our 3D plans page for more information about a great addition to our free plans pack.  We've developed a fully interactive 3D PDF model that can be viewed in Adobe Reader (10 or higher).  3D PDF allows you to turn, tumble and zoom an image of the complete electric go kart.  This is a fantastic aid for building the kart and complements our popular free plans pack. We are currently offering our electric kart 3D PDF plans for £1.00 only (normal price £3.00) to fans of HWM Designs Ltd on Facebook. Check us out and become a fan www.facebook.com/hwmdesigns

Build your own electric go kart

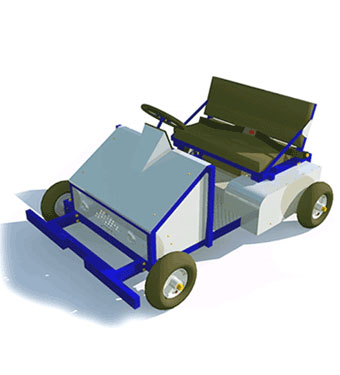

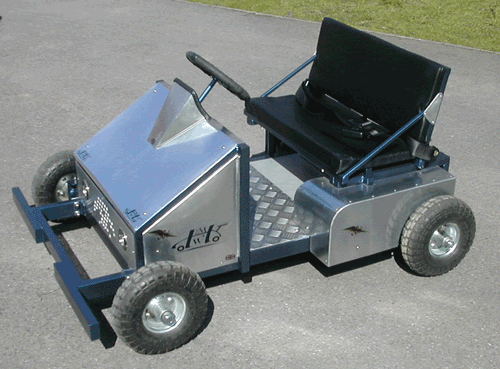

If you are looking for a fantastic 'garage engineering' project that can be built with basic tools then look no further.  Fitted with a 500W motor this electric kart is capable of 12-15mph (but can be restricted to lower speeds).  The design is flexible and can easily be adapted. As drawn, the kart is 1.32m long, has track (width) of 0.99m and stands 0.62m high.

Made with a steel tube section frame, building the kart is a simple welding project with a TIG, MIG or MMA (stick) welder. The design is scalable and all dimensions can be multiplied by up to 20% to produce a larger kart.  Building this go kart is a great way to learn about welding, electric drives, speed controllers, steering geometry, braking systems and general mechnical engineering.

A lighting system is fitted, making night-driving possible.  Speed is controlled by a 4QD motor controller that also produces a regenerative braking effect.  Additional braking for the kart is provided by a cable operated disc brake.

All of the parts we used can be readily found via the internet or from local suppliers.

Download free kart plans now!

Our kart plans are suitable for anyone with basic mechanical construction skills to follow.  The free plans are in PDF format and are designed to be printed on A4 paper.  You can use the plans to build an exact copy, or as a source of ideas for designing and building your own go kart.

We've solved some of those tricky engineering issues you might be struggling with; brake and accelerator pedal design, how to mount drive sprockets and how to wire-up.  Our plans have dimensions for all parts and handy 3D sketches showing how the assemblies fit together.  We've also included links pages and a page on electric vehicles. You may find them useful sources of information if you are building your own kart.  If you come across any other useful links for kart building and electric vehicles in general then let us know and we will add them to our pages.


Play the 'kart-cam' video!
